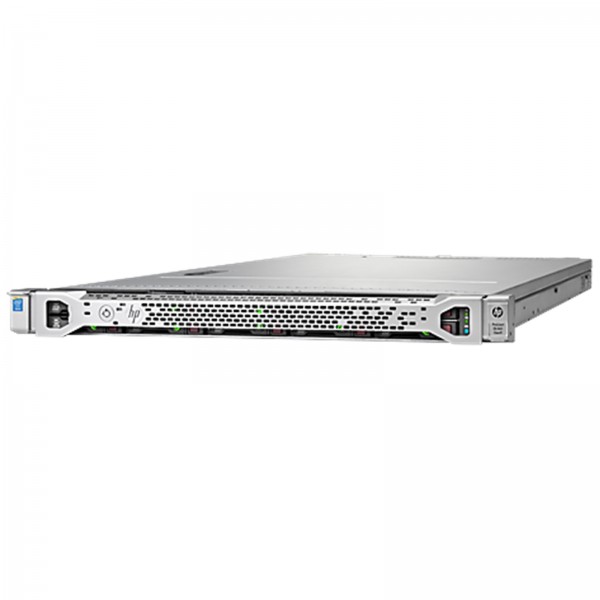

• HPE ProLiant DL160 Gen9 Base
• Server
• rack-mountable
• 1U
• 2-way
• 1 x Xeon E5-2620V4 / 2.1 GHz
• RAM 16 GB
• SAS
• hot-swap 2.5"
• no HDD
• G200eH2
• GigE
• monitor: none

Cache Memory

Cache Per Processor: 20 MB

Installed Size: L3 Cache - 20 MB

Dimensions & Weight

Depth: 60.76 cm

Height: 4.29 cm

Weight: 10 kg

Width: 43.46 cm

Environmental Parameters

Humidity Range Operating: 8 - 90% (non-condensing)

Max Operating Temperature: 35 °C

Min Operating Temperature: 10 °C

Sound Emission: 35.9 dBA

Expansion / Connectivity

Bays: 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF

Interfaces: 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x HP iLO - RJ-45 ¦ 1 x VGA ¦ 1 x USB 2.0 (1 in front) ¦ 3 x USB 3.0 (2 rear, 1 internal)

Slots: 2 (total) / 1 (free) x CPU ¦ 16 (total) / 15 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 1 (total) / 0 (free) x PCIe 3.0 x8 - low-profile ¦ 1 (total) / 1 (free) x microSD Card (internal)

General

Embedded Security: Trusted Platform Module (TPM 1.2) Security Chip

Front Accessible Bays Qty: 1

Hot-Swap Bays Qty: 8

Product Form Factor: Rack-mountable - 1U

Server Scalability: 2-way

Type: Server

Graphics Controller

Graphics Processor: Matrox G200eH2

Video Interfaces: VGA

Hard Drive

Type: No HDD

Manufacturer Warranty

Service & Support: Limited warranty - parts - 3 years - response time: next business day ¦ Limited warranty - parts and labour - 1 year - on-site - response time: next business day

Miscellaneous

Compliant Standards: ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, CNS 13438

Included Accessories: HP Easy Install Rails

Monitor

Monitor Type: None.

Networking

Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az

Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet

Ethernet Controller: HP 361i

Ethernet Ports: 2 x Gigabit Ethernet

Features: Wake on LAN (WoL), PXE support

Interface (Bus) Type: PCI Express 2.0 x2

Remote Management Controller: Integrated Lights-Out 4

Operating System / Software

OS Certified: SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris

Power

80 PLUS Certification: 80 PLUS Silver

Device Type: Power supply

Efficiency: 89%

Nominal Voltage: AC 120/230 V (50/60 Hz)

Power Provided: 550 Watt

Processor / Chipset

CPU: Intel Xeon E5-2620V4 / 2.1 GHz

CPU Qty: 1

Max CPU Qty: 2

Max Turbo Speed: 3 GHz

Number of Cores: 8-core

Processor Main Features: Intel Turbo Boost Technology 2

RAM

Configuration Features: 1 x 16 GB

Effective Memory Speed: 2133 MHz

Features: Registered, HP SmartMemory

Form Factor: DIMM 288-pin

Installed Size: 16 GB / 512 GB (max)

Memory Specification Compliance: PC4-19200

RAM Supported: PC4-19200 - 512 GB registered ¦ PC4-17000 - 1 TB Load-Reduced

Rated Memory Speed: 2400 MHz

Technology: DDR4 SDRAM

Storage Controller

Channel Qty: 8

Controller Interface Type: SATA 6Gb/s / SAS 12Gb/s

RAID Level: RAID 0, RAID 1, RAID 5

Storage Controller Name: HP H240 Smart Host Bus Adapter

Type: 1 x RAID - PCIe 3.0 x8
