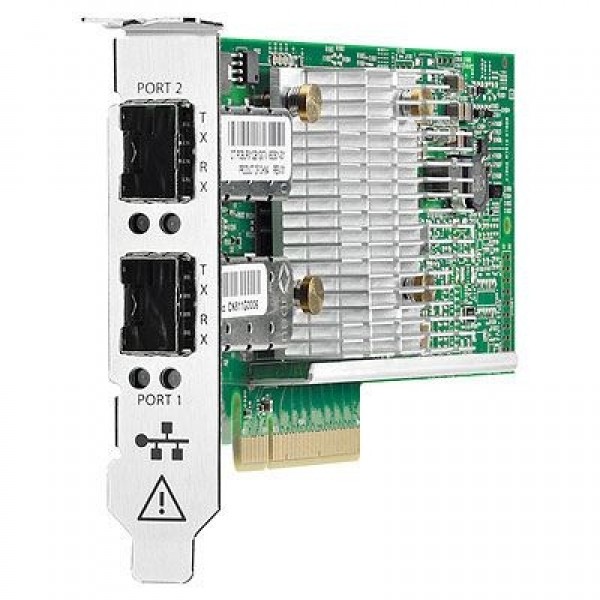

  • 652503-B21 - HP Ethernet 10Gb 2-port 530SFP+ Adapter

Description
The HP 530SFP+ is a dual-port 10Gb Ethernet adapter featuring the next generation BCM57810S single-chip solution from Broadcom in a PCIe 2.0 compliant form factor designed for select HP ProLiant Gen8 and Gen7 ML/DL/SL servers. The HP 530SFP supports enterprise class features such as VLAN tagging,adaptive interrupt coalescing,MSI-X,NIC teaming (bonding),Receive Side Scaling (RSS),jumbo frames,PXE boot and virtualization features such as VMware NetQueue and Microsoft VMQ. Support for HP Sea of Sensors 3D technology enhances server performance while reducing energy use and expense.

Full Specification
Device Type
Network adapter - 2 ports
Form Factor
Plug-in card - low profile
Interface (Bus) Type
PCI Express 3.0 x8
PCI Specification Revision
PCIe 3.0
Connectivity Technology
Wired
Data Link Protocol
10 Gigabit Ethernet
Data Transfer Rate
10 Gbps
Remote Management Protocol
SNMP
Status Indicators
Port status,link activity
Features
IPv6 support,Jumbo Frames support,teaming support,PXE support,Large Send Offload (LSO),Receive Side Scaling (RSS),TCP Segmentation Offload (TSO)
Compliant Standards
IEEE 802.3,IEEE 802.3ad (LACP),IEEE 802.1AX,IEEE 802.1Qbb,IEEE 802.1Qaz,IEEE 802.1Qau,IEEE 802.1Qbg,IEEE 802.1Qbh
Processor
1 x BCM57810S - Broadcom
RAM
256 MB
Interfaces
2 x network - 10Gb Ethernet - SFP+
Compatible Slots
1 x PCI Express 3.0 x8
Included Accessories
Low-profile bracket,full-height bracket
Compliant Standards
FCC Class A certified,UL,BSMI CNS 13438 Class A,EN 61000-3-2,EN 61000-3-3,EN55024,EN55022 Class A,FCC Part 15,WEEE,RoHS,ICES,VCCI V-3 Class A ITE
OS Required
SuSE Linux Enterprise Server 11,Microsoft Windows Server 2008 R2,SuSE Linux Enterprise Server 10,Microsoft Windows HPC Server 2008,Microsoft Windows Server 2008 (32/64-bits),Oracle Solaris 10,Red Hat Enterprise Linux 6.1,Red Hat Enterprise Linux 5.7
Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Humidity Range Operating
10 - 95% (non-condensing)

Write a review

Please login or register to review

652503-B21 - HP Ethernet 10Gb 2-port 530SFP+ Adapter

  • Product Code: 652503-b21
  • Availability: 7

  • £354.00

  • Ex Tax: £295.00

0 reviews / Write a review

Tags: 652503-B21, HP, Ethernet, 10Gb, 2-port, 530SFP+, Adapter
