Compatibility Information

Designed For: Lenovo ThinkPad P51s 20HB, 20HC, 20JY, 20K0 ¦ Lenovo ThinkPad P52s ¦ Lenovo ThinkPad T25 ¦ Lenovo ThinkPad T470 20HD, 20HE, 20JM, 20JN ¦ Lenovo ThinkPad T470s 20HF, 20HG, 20JS, 20JT ¦ Lenovo ThinkPad T480 ¦ Lenovo ThinkPad T570 20H9, 20HA, 20JW, 20JX ¦ Lenovo ThinkPad T580 ¦ Lenovo ThinkPad X1 Carbon 20HQ, 20HR, 20K3, 20K4, 20KG, 20KH ¦ Lenovo ThinkPad X1 Yoga 20JD, 20JE, 20JF, 20JG, 20LD ¦ Lenovo ThinkPad X280 20KE, 20KF ¦ Lenovo ThinkPad X380 Yoga ¦ Lenovo ThinkPad Yoga 370 20JH, 20JJ

Environmental Parameters

Max Operating Temperature: 40 °C

Min Operating Temperature: 5 °C

Expansion / Connectivity

Interfaces: 4 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x SuperSpeed USB 3.0 with Always-On Mobile Device Charging ¦ 2 x Thunderbolt 3 ¦ 2 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 1 x audio / video - HDMI ¦ 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45

General

Depth: 8 cm

Height: 3 cm

Localisation: English / Hong Kong, Sri Lanka, Malaysia, Singapore, United Kingdom

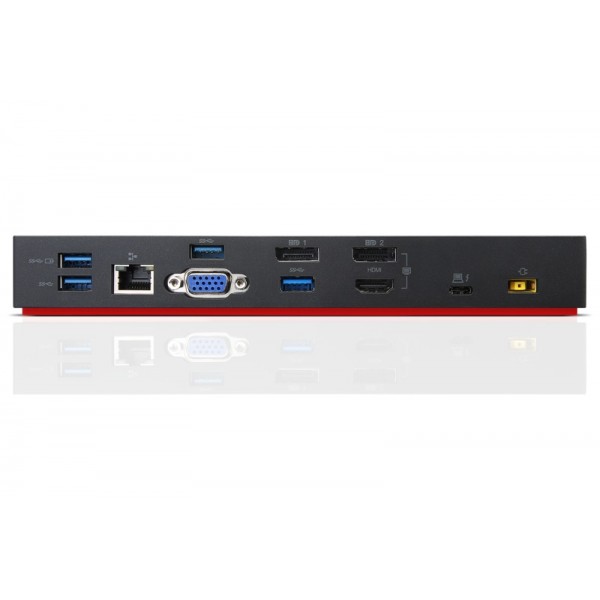

Product Type: Port replicator

Weight: 250 g

Width: 22 cm

Manufacturer Warranty

Service & Support: Limited warranty - replacement - 3 years

Miscellaneous

Cables Included: 1 x Thunderbolt cable

Compliant Standards: UL, VCCI, BSMI, SABS, CB, EMC, FCC, ICES, KC, RCM, CoC, CU, BMSI

Features: Wake on LAN, Preboot Execution Environment (PXE) support

Networking

Data Link Protocol: Gigabit Ethernet

Power

Power Device: Power adapter

Power Provided: 135 Watt
