The ProLite T1732MSC 17″ multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance.

The touch function remains unaffected even if the glass is scratched.

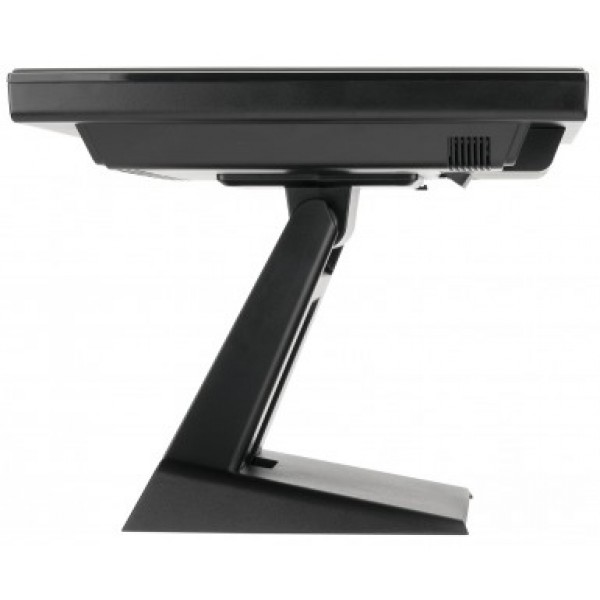

A solid and steady base supports the TouchScreen with an adjustable stand offering full 90 degree positioning angles.

Menu Buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the TouchScreen for cleaning.

In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.

Display diagonal

43.2 cm (17")

Response time

5 ms

Display brightness

225 cd/m²

Display resolution

1280 x 1024 pixels

Display type

LED

Contrast ratio (typical)

1000:1

Display

TN+Film

Pixel pitch

0.264 x 0.264 mm

Horizontal scan range

31.4 – 80 kHz

Vertical scan range

56 – 75 Hz

Viewing angle, horizontal

160°

Viewing angle, vertical

160°

Aspect ratio

5:4

Display viewable area (HxV)

270.5 x 338 mm

Separate H/V sync

Y

Backlight type

LED

Full HD

N

Touchscreen technology

Capacitive

Display diagonal (metric)

43 cm

LED backlight

Y

Supported graphics resolutions

1280 x 1024 (SXGA)

Display number of colours

16.77

Touchscreen type

Multi-user

Built-in camera

N

Built-in speaker(s)

Y

Number of loudspeakers

2

RMS rated power

2 W

Number of OSD languages

8

Number of simultaneous touchpoints

10

Plug and Play

Y

Cables included

AC, Audio (3.5mm), DVI, USB, VGA

USB 2.0 ports quantity

1

DVI-D ports quantity

1

VGA (D-Sub) ports quantity

1

Colour of product

Black

Glass thickness

7 mm

Certification

CE, CB, TÜV-Bauart, VCCI, GOST-R, IP54

Tilt angle

-5 – 90°

VESA mounting interfaces

100 x 100 mm

Wall mountable

Y

Tilt adjustment

Y

Cable lock slot

Y

LED indicators

Y

Power supply type

AC

Power consumption (typical)

25 W

AC input voltage

100 – 240 V

AC input frequency

50/60 Hz

Width

387 mm

Height

202 mm

Depth

342 mm

Weight

5.6 kg
